Cold-rolled steel is a product made from hot-rolled coils that are rolled below the crystallization temperature at room temperature. Used in automobile manufacturing, electrical products, etc. Cold-rolled steel plate is the abbreviation of ordinary carbon structural steel cold-rolled plate, also known as cold-rolled plate, commonly known as cold-rolled plate, sometimes miswritten as cold-rolled plate.
Cold-rolled ms steel sheet is a plate obtained by rolling a slab using a rolling mill. The production process includes: first heating the steel billet to a moderate temperature, and then rolling and stretching it. Cold plates have high surface precision, high hardness, and good corrosion resistance.
They are usually used to manufacture containers, pipes, etc.
CR steel sheets have good processability, with good flatness and excellent surface, are available with different thickness and width combinations; Are mainly used to manufacture the high value-added products in automotive and appliance, beverage packaging, electronic, electrcial moor and building etc. The CR steel sheet include the uncoated steel steel, galvanzied steel sheet, tin plate and TFS, precoated steel sheet and electrical steel steel, etc.
The cold rolled plate has a good mechanical properties and process properties (such as higher strength, lower yield limit, good deep drawability, etc.).
| Standard | JIS G3141,DIN1623,EN10130 |
| Material | SPCC, SPCD SPCE,Q195,DC01,DC02,DC03,DC04,ST12 |
| Thickness | 0.10-3 mm |
| Width | 20-1500 mm,Normal width is 914/1000/1219/1250/1500 mm |
| Finish | General, bright, dull and mirror finish, oiled or non-oiled |
| Length | Regular Or As per the client's request |
| Weight Calculation | Weight(kg)=Thickness(mm)*Width(m)*Length(m)*Density(7.85g/cm3) |
| Packaging | Export standard packing or according to customers' requirement. |
| Certificate | ISO9001:2008,SGS |
| Shipment | Within 7-15 workdays according to the order quantity |
| Available Standards And Grades |
| GB/T5213-2008 | din1623 | EN 10130-2006 | JIS G3141-2005 | ISO 3574-1999 | ASTM A1008M-07 |
| DC01 | ST12 | DC01 | SPCC | CR1 | CS Type C |
| DC03 | ST13 | DC03 | SPCD | CR2 | CS Type A,B |
| DC04 | ST14,ST15 | DC04 | SPCE | CR3 | DS Type A,B |
| DC05 | | DC05 | SPCF | CR4 | DDS |
| DC06 | ST16 | DC06 | SPCG | CR5 | EDDS |
| DC07 | | DC07 | - | - | - |
| Chemical Composition |
| Name | Chemical Composition |
| C max | Mn max | P max | S max | Alts min | Ti max |
| DC01 | 0.1 | 0.5 | 0.035 | 0.025 | 0.020 | |
| DC03 | 0.08 | 0.45 | 0.030 | 0.025 | 0.020 | |
| DC04 | 0.08 | 0.40 | 0.025 | 0.020 | 0.020 | |
| DC05 | 0.008 | 0.30 | 0.020 | 0.020 | 0.015 | 0.2 |
| DC06 | 0.008 | 0.30 | 0.020 | 0.020 | 0.015 | 0.2 |
Product Tags:
|
|

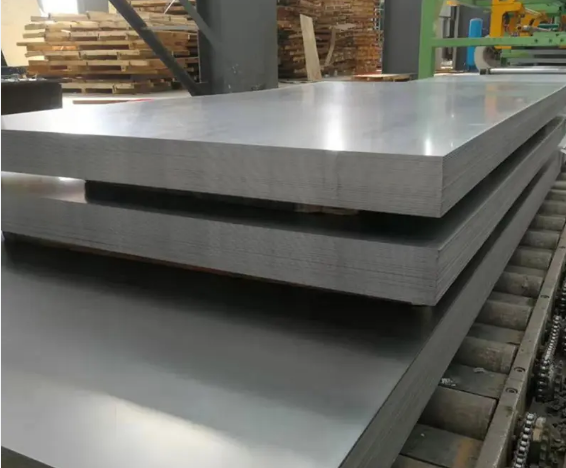

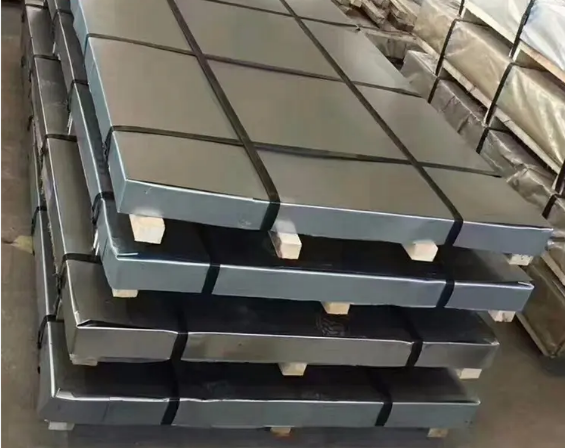

0.15-2.5mm Cold Rolled Carbon/Mild Steel Sheet DC01 DC03 DC04 Full Hard Black/Bright Annealed Ms Iron Metal Cr Plate Images
|
